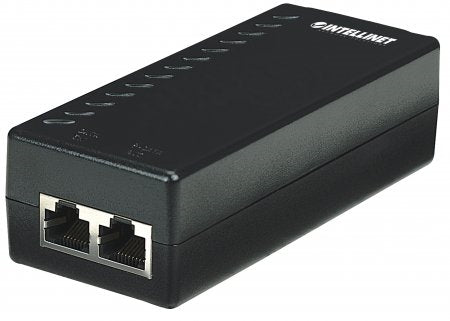

Power over Ethernet (PoE) Injector (524179)

10/100 802.3af Single Port 15.4Watt Injector Datasheet: StandardsIEEE 802.3af (Power over Ethernet)IEEE 802.3 (10Base-T Ethernet)IEEE 802.3u (100Base-TX Fast Ethernet)GeneralMedia support: - 100Base-TX Cat5 UTP/STP RJ-45, 8 pinPorts: - 1 RJ-45 100 Mbps input port - 1 RJ-45 100 Mbps data and power output ports - 1 power input connector (3 pin)Protection functions: - Short-circuit protection for short GND - Overload protection for currents over 450 mA - High-voltage protection for output voltage exceeding 52 VCompatibility - general: all IEEE 802.3af-compliant PoE devicesSupported INTELLINET NETWORK SOLUTIONS products: - Wireless 300N Access Points (524735, 524711) - High Power Wireless G Access Point (503082) - PoE Splitter (502900) - Network Cameras (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR)Certifications: FCC Class B, Part 15, CE 89/336/EECRJ-45 Input Connector PinoutPin 1: Rx+ (data receive)Pin 2: Rx- (data receive)Pin 3: Tx+ (data transmit)Pin 4: NC (not connected)Pin 5: NC (not connected)Pin 6: Tx- (data transmit)Pin 7: NC (not connected)Pin 8: NC (not connected)RJ-45 Output Connector Pinout (Data + Power)Pin 1: Rx+ (data receive)Pin 2: Rx- (data receive)Pin 3: Tx+ (data transmit)Pin 4: -Vdc_return (+) (feeding power [+])Pin 5: -Vdc_return (+) (feeding power [+])Pin 6: Tx- (data transmit)Pin 7: -Vdc (feeding power [-])Pin 8: -Vdc (feeding power [-])LEDsAC Powered (red)Channel Powered (green)Channel Alarm (red)PowerInput: 100 – 240 V AC, 50 – 60 HzOutput: 48 V DC / 350 mAPower consumption: 19 Watts (maximum) EnvironmentalPlastic housing (ABS)Dimensions: 120 (L) x 50 (W) x 35 (H) mm (4.7 x 2.0 x 1.4 in.)Weight: 0.14 kg (0.3 lbs.)Operating temperature: 0 – 60°C (32 – 140°F)Operating humidity: 10 – 90% RH, non-condensingStorage temperature: -20 – 85°C (-4 – 185°F)Package ContentsPower Over Ethernet InjectorPower cableInstruction sheet
