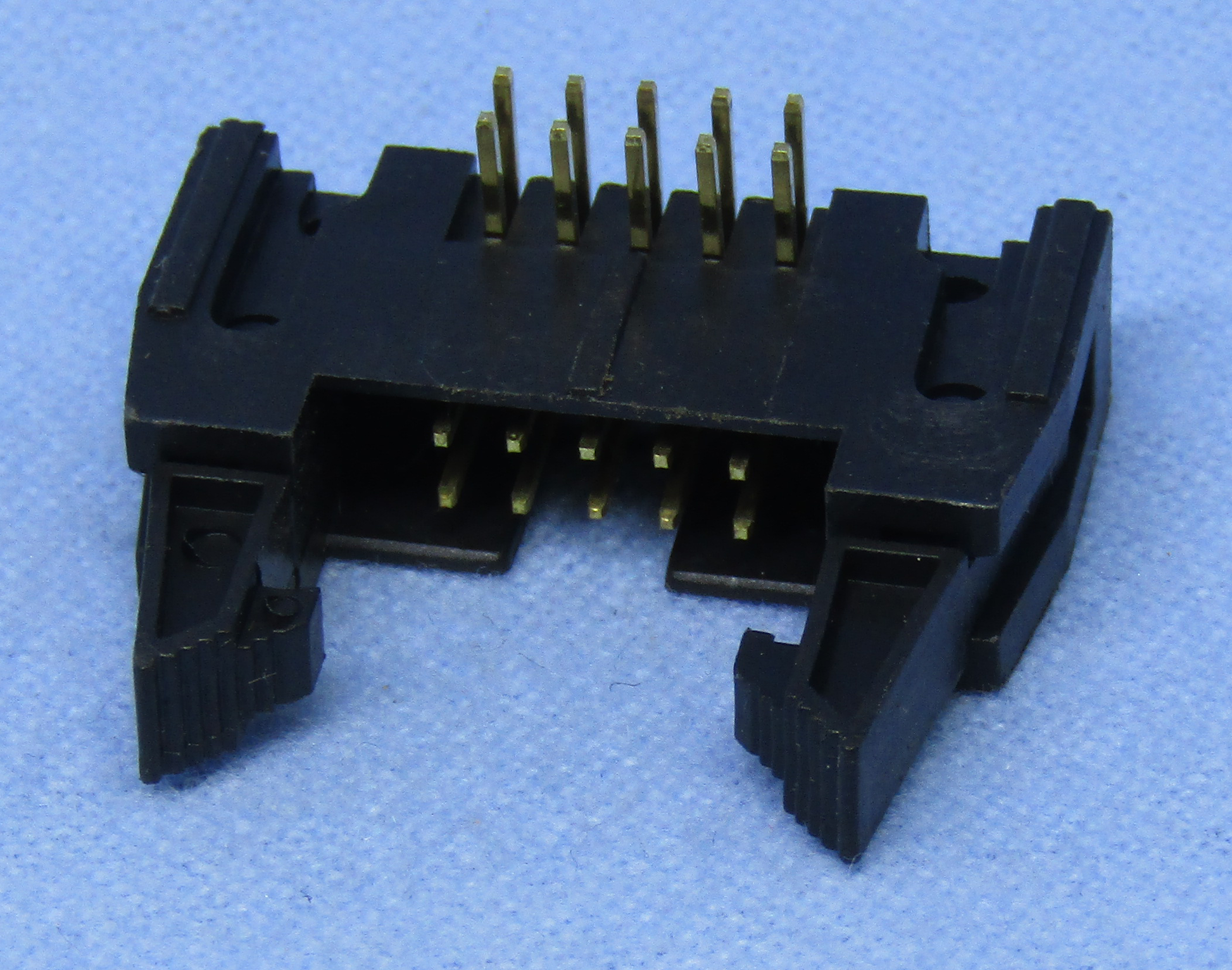

DUAL ROW SHROUDED HDR-RT. ANGLE - 10 position These multiconductor headers are designed for use with female flat cable connectors, such as those in the Philmore 70-4200 series. Compatible with virtually all IDC specifications. Quick, secure connection/disconnection of multiline data cables. The contacts are completely protected by surrounding walls, or ‘shrouding. Side latches (removable) secure the mating female in place. The contacts are standard .025" square posts. Contact areas are gold plated; the termination areas are tin-lead. Insulation material is a black thermoplastic, 94V-0 rated. Available in ten thru sixty contacts; last 2 digits of product code indicate number of contacts.
