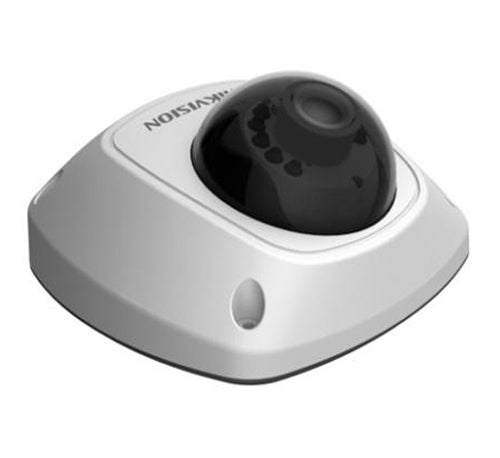

DM IP672MP4MM WDR IR POE/12 (hikv_DS-2CD2522FWD-IS)

Compact Dome, 2MP/1080p, H264, 6mm, Day/Night, 120dB WDR, IR (30m), 3-Axis, Alarm I/o, Audio Mic/O, uSD, IP66, PoE/12VDCDatasheet: Image Sensor: 1/3" Progressive Scan CMOS Min. Illumination: 0.028 lux @ (ƒ/2.0, AGC on); B/W: 0 lux with IR Shutter Time: 1/3 s to 1/10,000 s Lens: 4 mm, 6 mm options; angle of view: 85° (4 mm), 52° (6 mm) Lens Mount: M12 Adjustment Range: Pan: -30° to 30°, tilt: 0° to 75°, rotation: 0° to 360° Day& Night: IR cut filter with auto switch Wide Dynamic Range: 120 dB Digital noise reduction: 3D DNR Video Compression: H.264/MJPEG H.264 code profile: Main profile Video bit rate: 256 Kbps â€“ 16 Mbps Audio Compression: G.711/G.722.1/G.726/MP2L2 Dual Stream: Yes Max. Image Resolution: 1920 x 1080 Frame Rate: 30 fps (1920 Ã— 1080, 1280 Ã— 960, 1280 Ã— 720) Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser BLC: Yes, zone configurable ROI: Yes, 4 regions 3D DNR: Supported Network Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPoE, NTP, UPnP, SMTP,S NMP, IGMP, 802.1X, QoS, IPv6, Bonjour System Compatibility: ONVIF, PSIA, CGI, ISAPI Audio Input: 1channel (2.0 ~ 2.4Vp-p, 1KOhm) Audio Output: 1 channel (Line level, 600Ohm) Communication Interface: 1 RJ45 10M / 100M Ethernet interface Alarm Input: 1 Alarm Output: 1 On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Operating Conditions: -30 Â°C ~ 60 Â°C (-22 Â°F ~ 140 Â°F)Humidity 95% or less (non-condensing) Power Supply: 12 VDC Â± 10%, PoE (802.3af) Power Consumption: Maximum 5 W, maximum 9 W with pan and tilt Impact Protection: IK08 Protection Level Weather Proof: IP66 IR Range: 10 meters Dimensions: 99.3 mm x 96.7 mm x 52.8 mm (3.91" x 3.81" x 2.08") Weight: 600 g (1.32 lbs)
