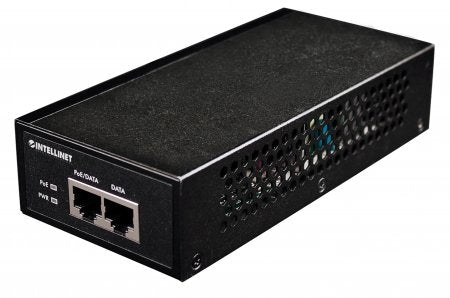

1-Port Gigabit High-Power PoE+ Injector (560566)

Gigabit 802.3at High Power Single Port Injector 30watt StandardsIEEE 802.3af (Power over Ethernet)IEEE 802.3at (High-Power PoE+ Power over Ethernet)IEEE 802.3 (10Base-T Ethernet)IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3u (100Base-TX Fast Ethernet)GeneralMedia support: - 100Base-TX Cat5 UTP/STP RJ45, 8 pin - 1000Base-T Cat5e UTP/STP RJ45, 8 pinPorts: - 1 RJ45 1000 Mbps input port - 1 RJ45 1000 Mbps data and power output port - 1 power input connector for external power adapterProtection functions: - Short circuit protection for short GND - Overload protection for currents over 1.8 A - High-voltage protection for output voltage exceeding 58 VCompatibility - general: all IEEE 802.3at- and IEEE 802.3af-compliant PoE devicesSupported INTELLINET NETWORK SOLUTIONS products: - Wireless 300N Access Points (524735, 524711, 525251) - IEEE 802.3at PoE+ Splitter (560443) - Network Cameras (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR, 551229 NFD130-IR, 551236 NFD130-IRV)Certifications: FCC Class B Part 15, CE 89/336/EECRJ45 Input Connector PinoutPin 1: Rx+ (data receive)Pin 2: Rx- (data receive)Pin 3: Tx+ (data transmit)Pin 4: NC (not connected)Pin 5: NC (not connected)Pin 6: Tx- (data transmit)Pin 7: NC (not connected)Pin 8: NC (not connected)RJ45 Output Connector Pinout (Data + Power)Pin 1: Rx+ (data receive) and feeding power [+]Pin 2: Rx- (data receive) and feeding power [+]Pin 3: Tx+ (data transmit) and feeding power [-]Pin 4: NC (not connected)Pin 5: NC (not connected)Pin 6: Tx- (data transmit) and feeding power [-]Pin 7: NC (not connected)Pin 8: NC (not connected)LEDPoE, PowerPowerInput: 100 – 240 V AC, 50 – 60 HzPower consumption: 42 watts (maximum) EnvironmentalMetal housingDimensions: 154 (L) x 72 (W) x 35 (H) mm (6.0 x 2.81 x 1.37 in.)Weight: 0.79 kg (1.73 lbs.)Operating temperature: 5 – 45°C (41 – 113°F)Operating humidity: 10 – 90% RH, non-condensingStorage temperature: -20 – 55°C (-4 – 131°F)Package Contents1-Port Gigabit High-Power PoE+ InjectorPower cableInstallation material (2 screws and drywall anchors) Instructions
